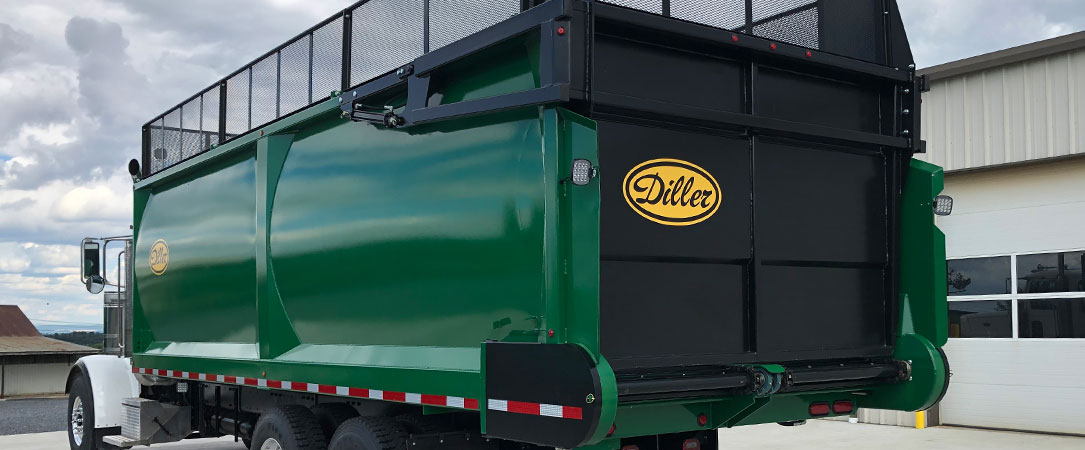

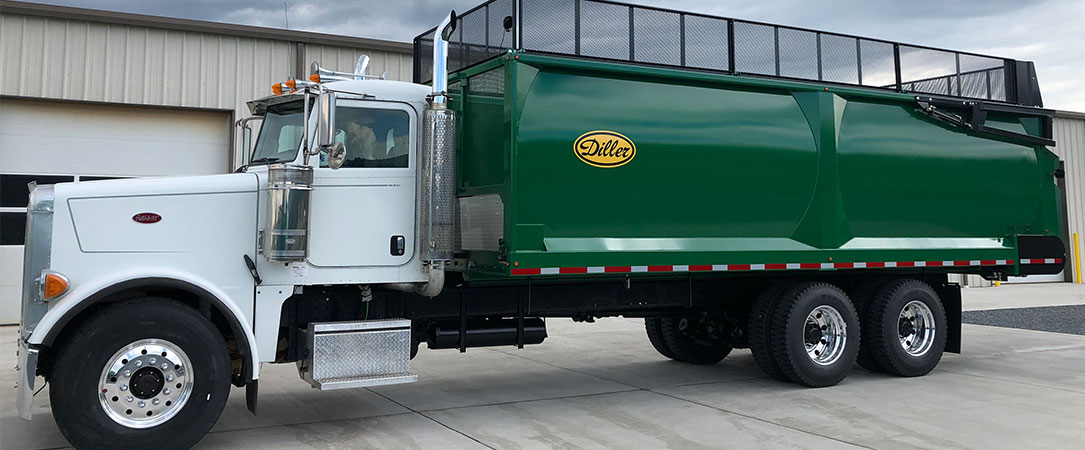

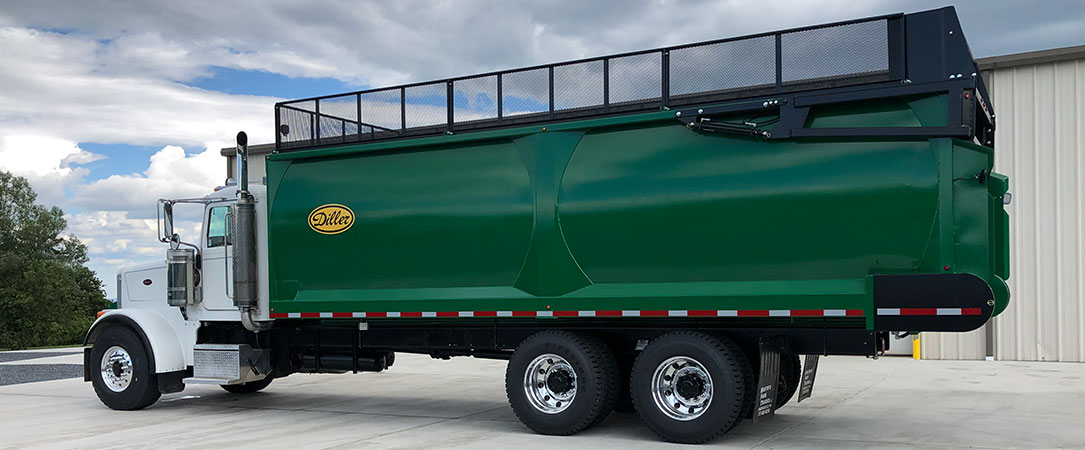

Truck-Mount Forage Boxes
Smaller loads and tighter spaces? Put your heavy spec farm truck to work with a NEW Diller truck-mounted forage box!
Tubular Steel Frame / 11 Gauge Sidewalls/Headboard
Dual Eaton Hyd Motors – Floor Drive
Reversible Direction Floor Webbing
High Lift Gate
Sandblasted/Primed Inside/Outside with Epoxy Finish
Tubular Steel Frame / 11 Gauge Sidewalls/Headboard
Overall Width – 102"
Side Height – 72", plus 24" Mesh Side Extensions
Tivar ¼" Durapro Floor Lining
Slatted Sub-Floor for Drainage
Dual Eaton Hyd Motors – Floor Drive
Reversible Direction Floor Webbing
High Lift Gate
DOT LED Lights – Flush Mount
LED Work Lights
Sandblasted/Primed Inside/Outside with Epoxy Finish
Color: Diller Green
Note: Installation and any Truck Components are not included.
Models | Length | CU FT | Empty Weight |
---|---|---|---|
FB022 | 22' | 1,400 | 9,900 lbs |
FB024 | 24' | 1,535 | 10,800 lbs |
Custom Lengths Available Upon Request |
![](../images/factorydirect.png)
Diller Manure Tankers and Diller Forage Trailers are sold factory direct from our Diller Tanker & Forage Trailer division located in St. Thomas, Pennsylvania.
Contact a sales representative by calling
800-640-4448 or email smyers@dillerag.com
![](/images/madeinusa.png)
Diller Ag Equipment is proudly made in America by American workers.
We work hard to source all of our steel and components from American vendors whenever possible.
![](/images/warranty1year.png)
Diller Ag offers a complete 1 year warranty on all products. This warranty covers all defects in material and workmanship and is effective from the date the end user takes delivery of their new unit.
