Kicker Bale Wagon

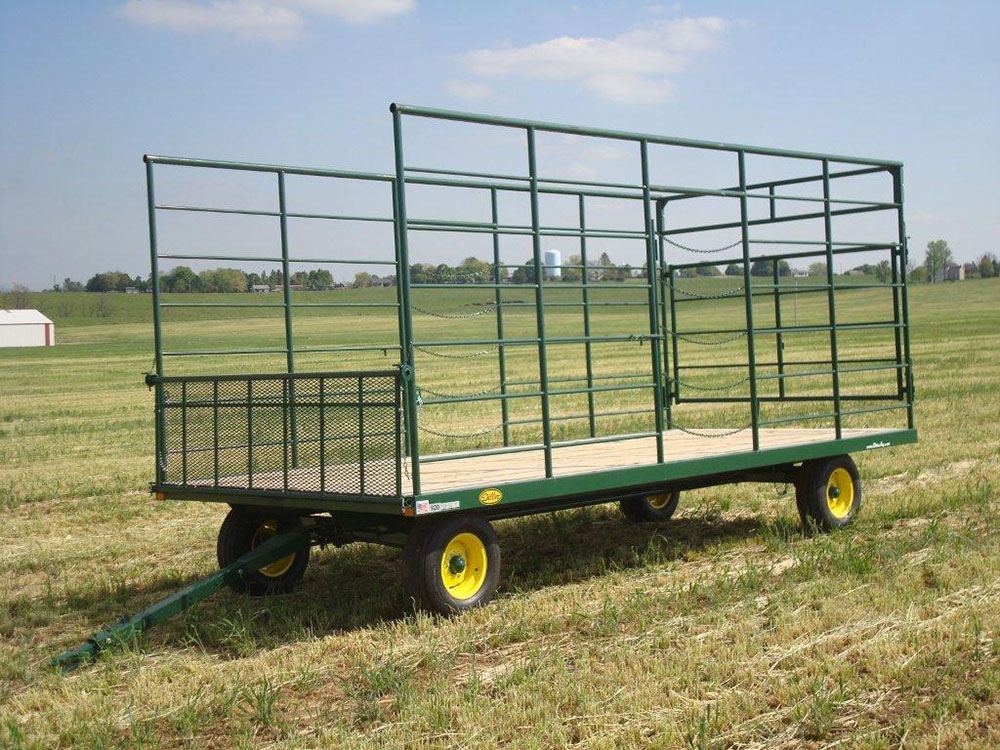

If you are looking for a small square bale wagon that is quality built and long lasting, your search is over. Diller wagons have been setting the bar for quality and durability in the industry for nearly 30 years. Many other brands today cut corners by using wood construction rather than steel. Most manufacturers offer the "option" of steel wagon frames and crossmembers, but a Diller wagon is built standard with an all-steel frame, body and sideracks.

The foundation of every Diller kicker wagon is a sturdy box frame constructed of heavy duty structural channel (6" or 8" based on wagon body length). On top of the frame is a network of 3" structural channel crossmembers that run perpendicular to the frame forming the sub-surface of the wagon deck. Our 12 gauge formed steel sides give your wagon an attractive finished appearance as well as housing the flush mounting points for the easily removable side racks. Each Diller wagon is then decked with 2" x 8" pressure treated lumber for the flooring and is secured with heavy duty 5/16" floor anchors.

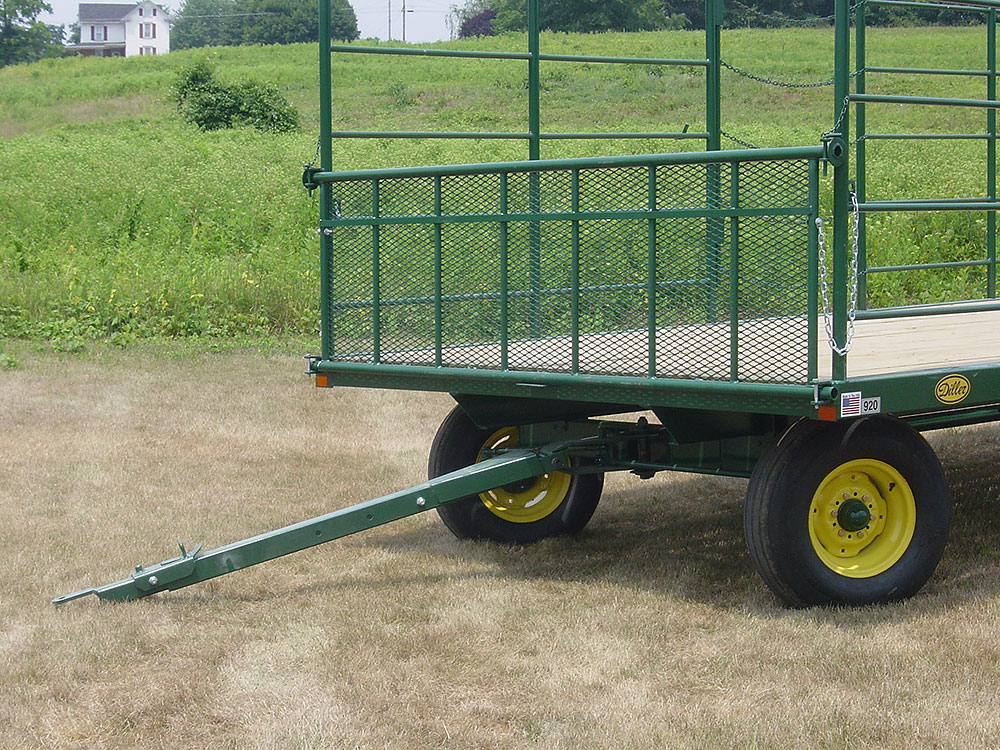

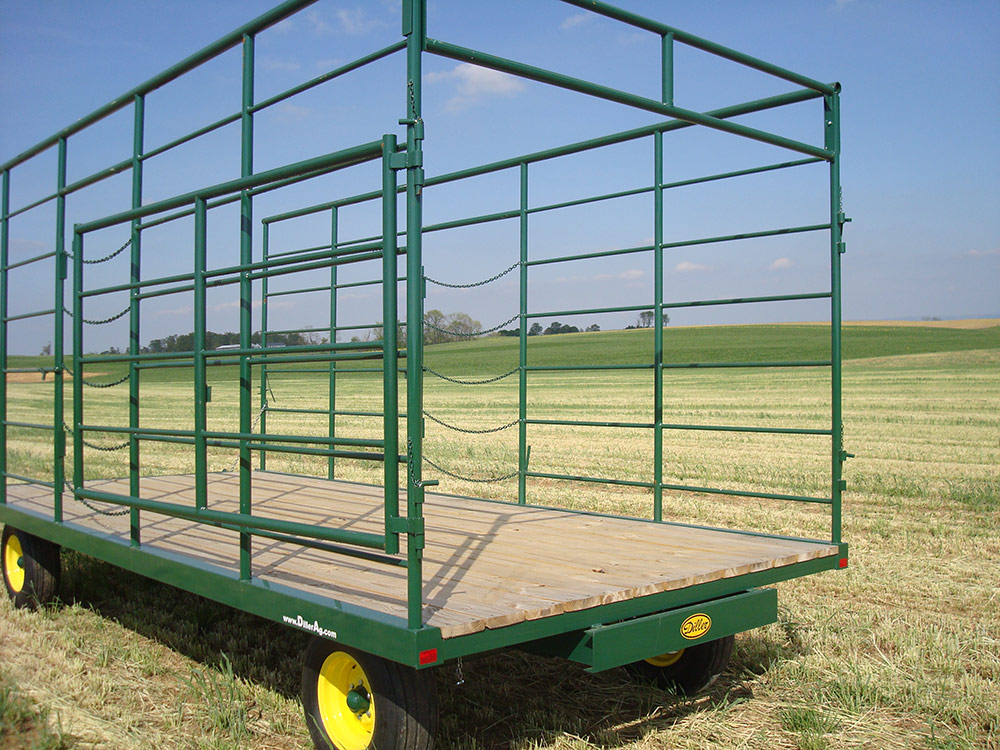

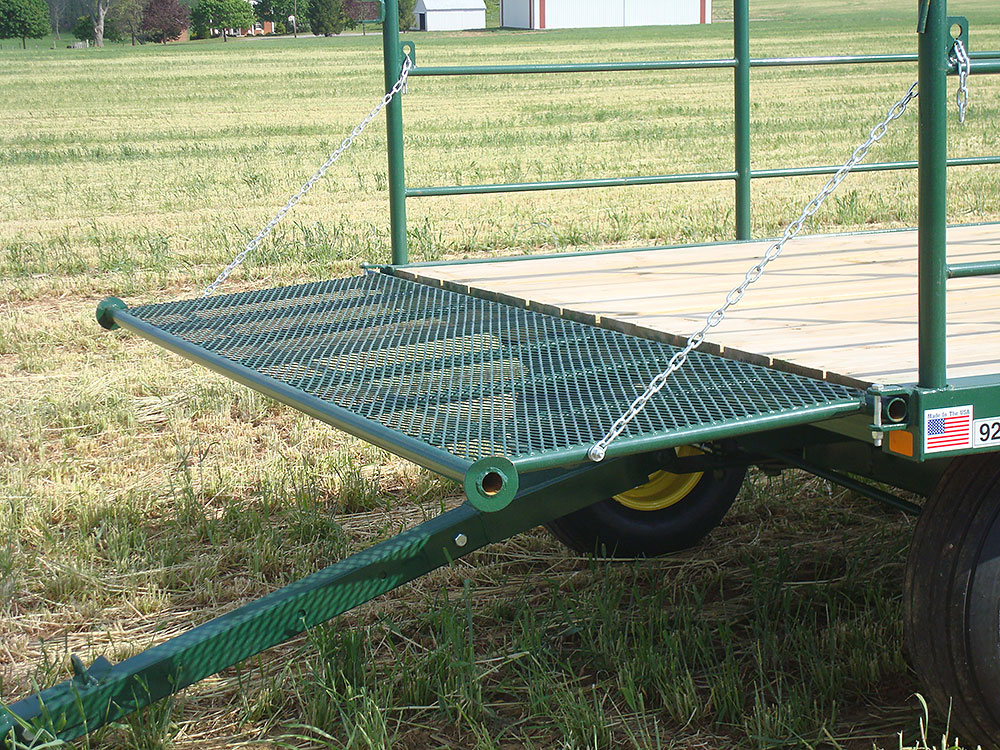

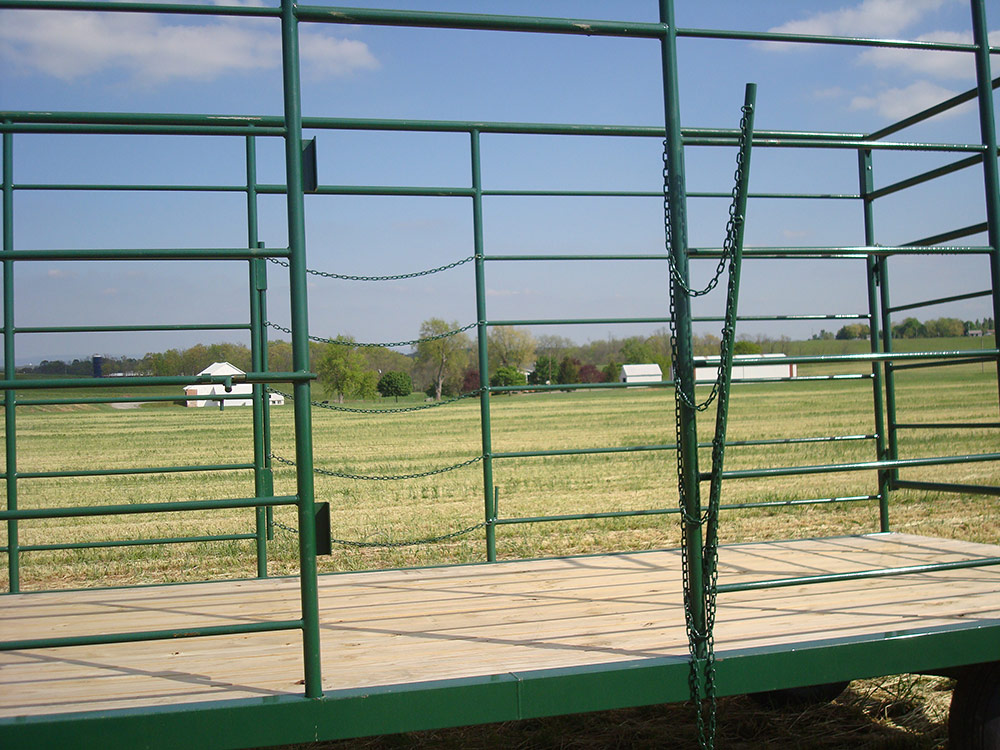

Our side-racks are designed with a 30" drop front gate and a full width gate in the rear that swings 270 degrees either direction. Centered on each side is a 45" wide chain gate opening. The side gates incorporate a Diller exclusive bind free latch design which opens easily even under the pressure of the load. The Diller sideracks are fabricated from heavy duty schedule 40 pipe making them the sturdiest wagon racks available today.

Diller small bale wagons are available in sizes & models to meet every need. Standard widths are 100" and 108" and are available in 16', 18', 20' and 24' lengths.

Finally, like every other piece of Diller Ag Equipment, the Diller Kicker wagon is finished to look new for years. After fabrication, all components are acid washed to remove any oils, dirt or other contaminants that could prevent paint adhesion. A coat of epoxy primer forms the base of the finish and is topped off with a finish layer of PPG™ two-part polyurethane paint. Due to the "elastic" nature of polyurethane paint it provides a durable finish that resists fading, chalking and chipping unlike many other paints.

What began as one man's vision for building the best bale wagon carries on today with superior quality and value. You might find a cheaper bale wagon but you won't be able to buy a better built or longer lasting wagon than a Diller!

Standard Features

  • All Steel Frame
  • Easily Removable Sch. 40 Pipe Side Racks
  • Side Gates Open Easily Under Pressure
  • Bi-Direction 270º Swing Rear Gate
  • 3" Channel Crossmembers
  • 12 Ga. Steel Formed Side Rails
  • Pressure Treated 2"x8" Decking
  • Epoxy Primer
  • Diller Green or Diller Red Polyurethane Paint


  • LED Ag Light Kit w/7Pin Plug
Diller 3 Year Warranty


Diller Ag offers a complete 3 year warranty on all products. This warranty covers all defects in material and workmanship and is effective from the date the end user takes delivery of their new unit. The obligation of this warranty shall be limited to repairing or replacing any part(s) that, in the opinion of Diller Ag, shall be proven defective in materials and/or workmanship under normal use and service.

Normal wear items are not covered by this warranty. Modification to the original design of the unit may void warranty. Warranty is valid only to the original owner.

Warranty claims must be made through an authorized Diller dealer. The dealer must call our warranty department for authorization for any warranty work to be performed. Failure to get prior authorization may result in unpaid claims.

Diller Ag reserves the right to modify, without notice, specifications and/or designs to their product without incurring any obligation to owners of previously sold product.

Diller classic bale wagon Diller classic bale wagon Diller classic bale wagon Diller classic bale wagon Diller classic bale wagon


Model Length Width Height Frame Crossmembers Chassis
BW-816 16' 100" 8' C6x8.2# 5 *Chassis sold separately
BW-818 18' 100" 8' C6x8.2# 6 *Chassis sold separately
BW-820 20' 100" 8' C6x8.2# 6 *Chassis sold separately
BW-918 18' 108" 8' C6x8.2# 6 *Chassis sold separately
BW-920 20' 108" 8' C6x8.2# 6 *Chassis sold separately
BW-924 24' 108" 8' C8x11.5# 11 *Chassis sold separately
