Gravity Bin Wagon

The GBW-200 marks Diller's entry into the gravity bin wagon market with a premium quality gravity bin that is designed to last longer than any other comparable capacity gravity bin wagon available today.

The Diller GBW-200 features heavy duty tube steel frame rails and a class leading 12 gauge steel bin wall thickness. Also unique for the 200-300 bushel class is the built in rocking bolster that allows the Diller GBW-200 to be paired with most other wagon chassis without fear of the box being damaged from chassis flex.

With the available 22" side extensions the GBW-200 increases its standard capacity from 200 to over 315 bushels. Ask your Diller dealer for information about ordering a GBW-200 today.

Diller's commitment to quality is the key to this product's longevity, and that commitment to quality lives on today at Diller Ag Equipment. We have only raised the bar on quality and will continue to hold that standard to every feeder, wagon and running gear we put the Diller name on.

Standard Features

  • Rocking Bolster Built into Frame
  • 3” x 6” x 3/16” Tube Steel Frame Rails
  • Formed 3/16” Frame
  • Formed 10 ga. Bracing
  • 12 ga. Bin Walls w/Reinforced Corners
  • SlipPlate™ Graphite Coating inside Bin
  • Auto-Locking Door Mechanism
  • Epoxy Primer
  • Diller Green or Diller Red Polyurethane Paint

Options

  • 22” Box Extensions (315 BU capacity) w/Ladder Extension
  • Sight Window
  • DOT-approved LED AG Lighting
Diller 3 Year Warranty

Warranty

Diller Ag offers a complete 3 year warranty on all products. This warranty covers all defects in material and workmanship and is effective from the date the end user takes delivery of their new unit. The obligation of this warranty shall be limited to repairing or replacing any part(s) that, in the opinion of Diller Ag, shall be proven defective in materials and/or workmanship under normal use and service.

Normal wear items are not covered by this warranty. Modification to the original design of the unit may void warranty. Warranty is valid only to the original owner.

Warranty claims must be made through an authorized Diller dealer. The dealer must call our warranty department for authorization for any warranty work to be performed. Failure to get prior authorization may result in unpaid claims.

Diller Ag reserves the right to modify, without notice, specifications and/or designs to their product without incurring any obligation to owners of previously sold product.

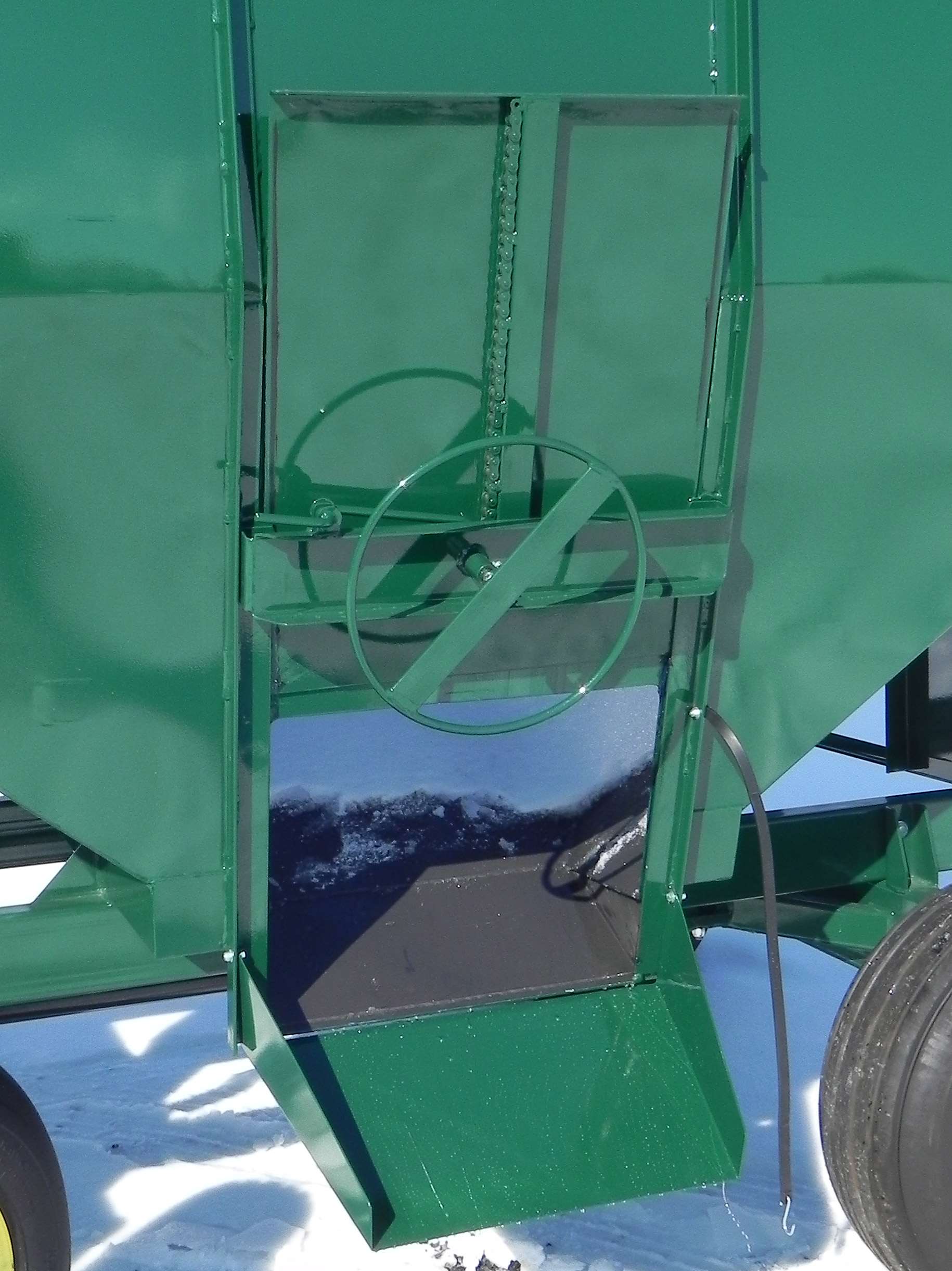

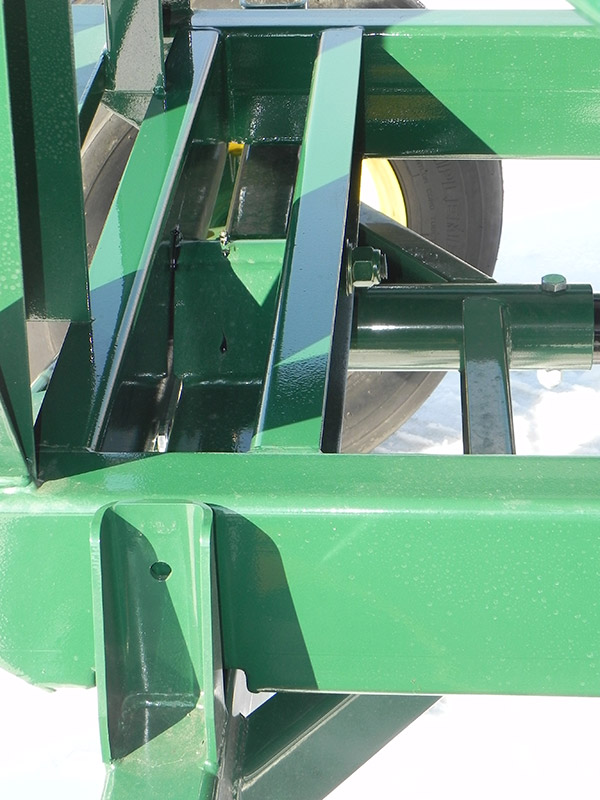

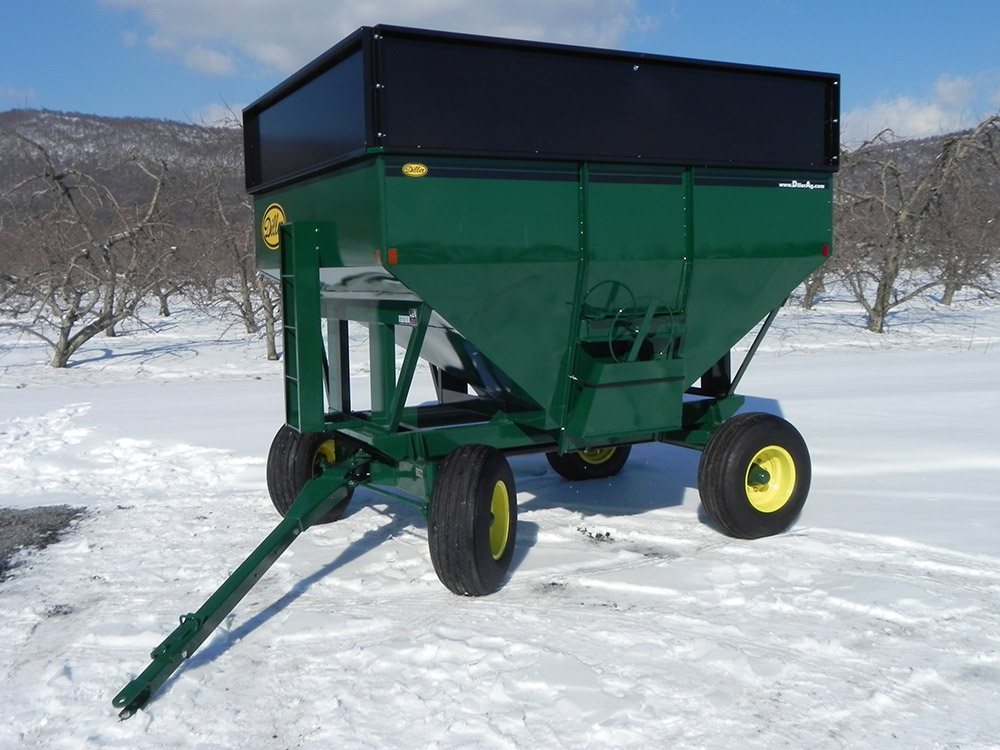

Diller Gravity Bin Wagon Grain chute swith and positive stop door locks and SlipPlate graphite coating. Diller Gravity Bin Wagon Rocking Bolster built into frame Diller Gravity Bin Wagon

Specifications

Model Width Length Height Capacity Capacity w/Extensions Chassis
GBW-200 96" 120" 60" 200 BU 315 BU w/22" Extensions *Chassis sold separately
