Diller Cattle Silage Feeder Wagon
Cattle Silage Feeder Wagons

The 7200 series cattle feeders are designed primarily for feeding grain, silage or haylage. The 7200 series feeders are 72" wide with a 12" deep pan that can hold a lot of feed.

The feeder body is fabricated from 10 gauge sheet steel with 4 drain holes in each end. The slant bar racks are constructed from heavy duty schedule 40 pipe.

Our 7200 series wagon feeders are available in 12', 16', 20' 24' and 28' lengths. They have an "Easy Hitch" pull out tongue on the dual wheeled front dolly and a rear axle.

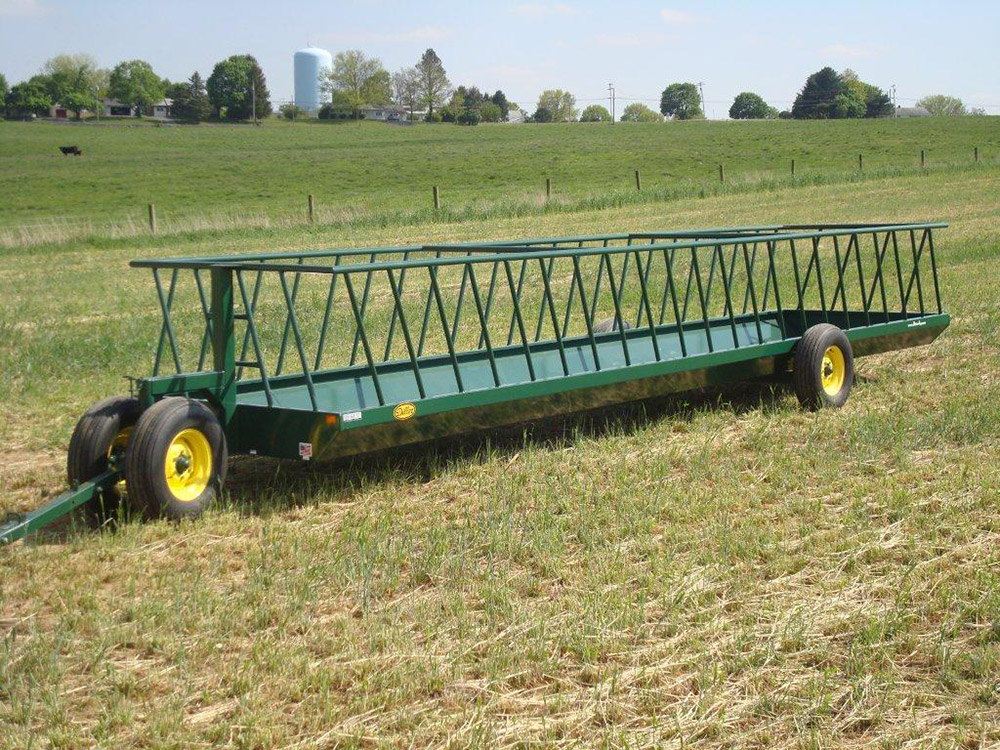

The 7200 series cattle feeders are finished to look new and remain rust free for years. After fabrication, the entire feeder is acid washed to remove any oils, dirt or other contaminants that could prevent paint adhesion. A coat of epoxy primer forms the base of the finish and is topped off with a finish layer of PPG™ two-part polyurethane paint. Due to the "elastic" nature of polyurethane paint it provides a durable finish that resists fading, chalking and chipping unlike many other paints or powder coating. (7220 is pictured above)

Standard Features

  • 10 Ga Steel Bottom with Feed Divider and Reinforced Corners
  • Sch. 40 Pipe Racks
  • 4 Drain Holes in Both Ends
  • 6 Lug 9.5Lx15 Tire & Wheel
  • Reinforced Axles

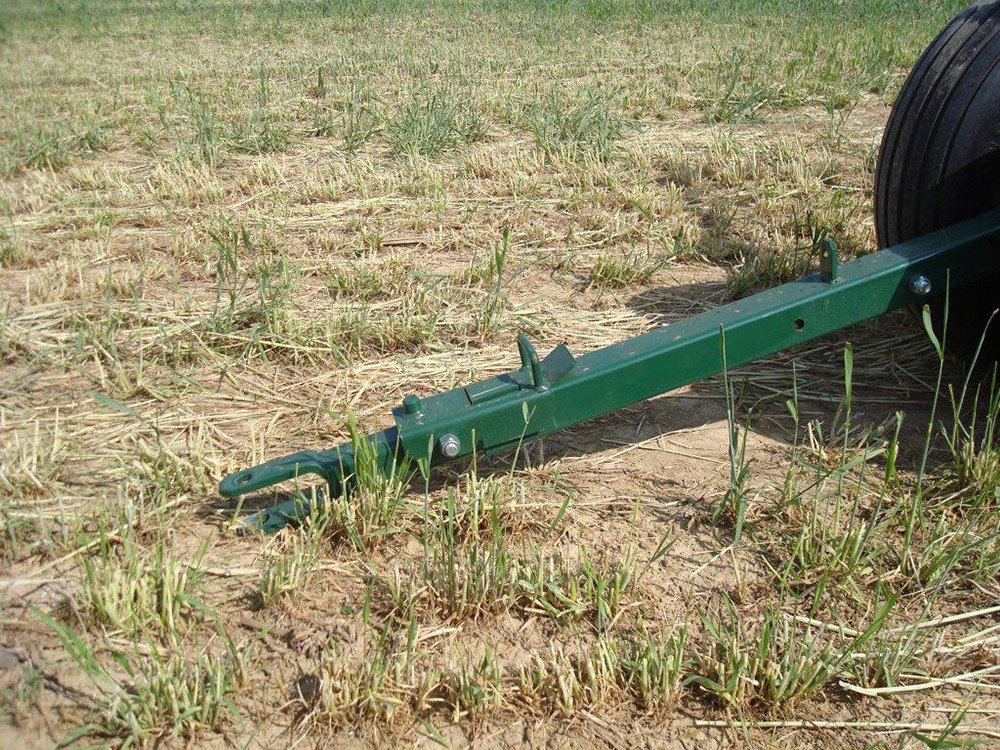

  • Easy Hitch - Pull Out Tongue

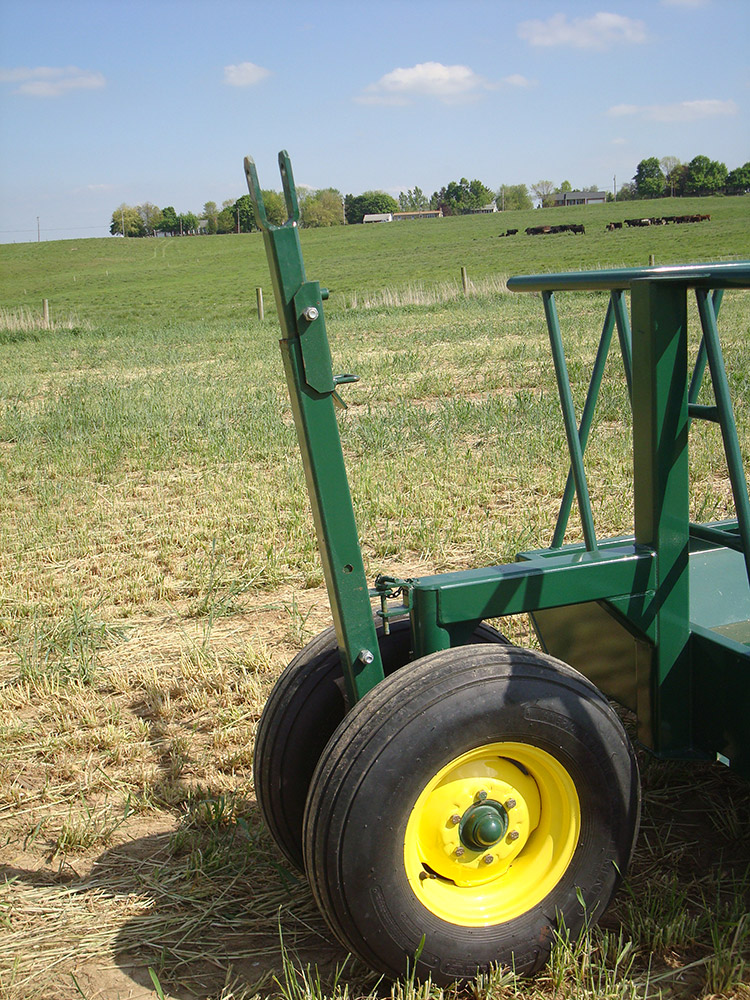

  • Tongue Stores in Upright Position
  • Epoxy Primer
  • Diller Green or Diller Red Polyurethane Paint
Diller 3 Year Warranty


Diller Ag offers a complete 3 year warranty on all products. This warranty covers all defects in material and workmanship and is effective from the date the end user takes delivery of their new unit. The obligation of this warranty shall be limited to repairing or replacing any part(s) that, in the opinion of Diller Ag, shall be proven defective in materials and/or workmanship under normal use and service.

Normal wear items are not covered by this warranty. Modification to the original design of the unit may void warranty. Warranty is valid only to the original owner.

Warranty claims must be made through an authorized Diller dealer. The dealer must call our warranty department for authorization for any warranty work to be performed. Failure to get prior authorization may result in unpaid claims.

Diller Ag reserves the right to modify, without notice, specifications and/or designs to their product without incurring any obligation to owners of previously sold product.

Cattle Silage Feeder Wagons Cattle Silage Feeder Wagons Cattle Silage Feeder Wagons Cattle Silage Feeder Wagons


Model Width Length Type Cattle Capacity
SFW-7212 72" 12' 4 WH 16-20
SFW-7216 72" 16' 4 WH 20-24
SFW-7220 72" 20' 4 WH 24-28
SFW-7224 72" 24' 4 WH 28-32
SFW-7228 72" 28' 4 WH 32-36
Download Printable PDF
