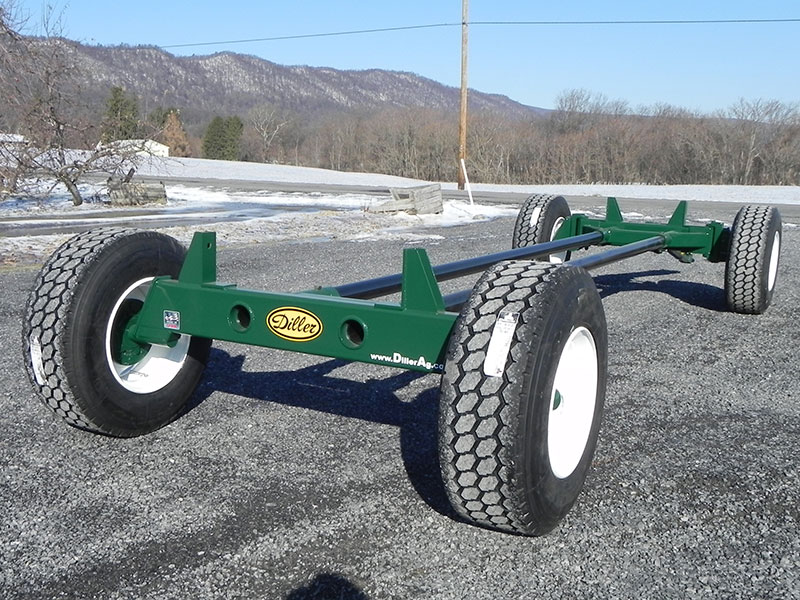

Heavy Duty Wagon Running Gear
Standard Features

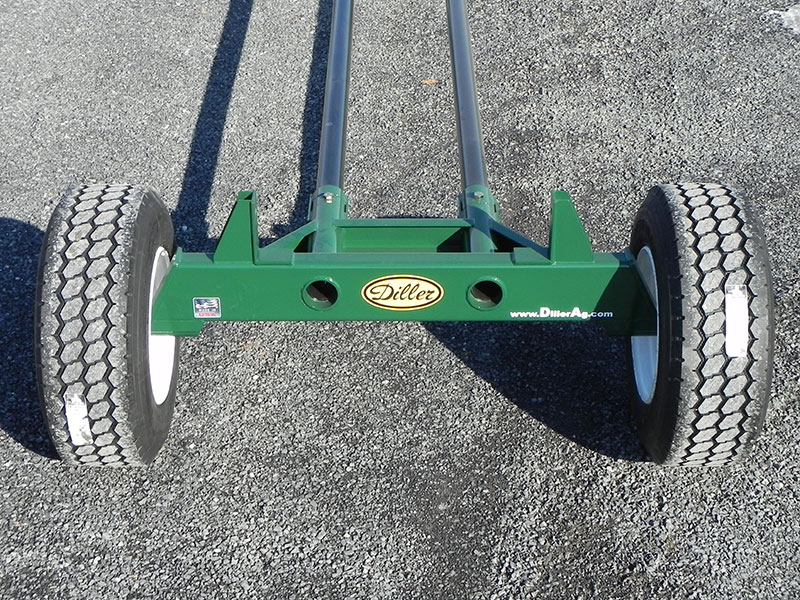

- Double Coupling Pole Design for Greater Stability and Truer Tracking

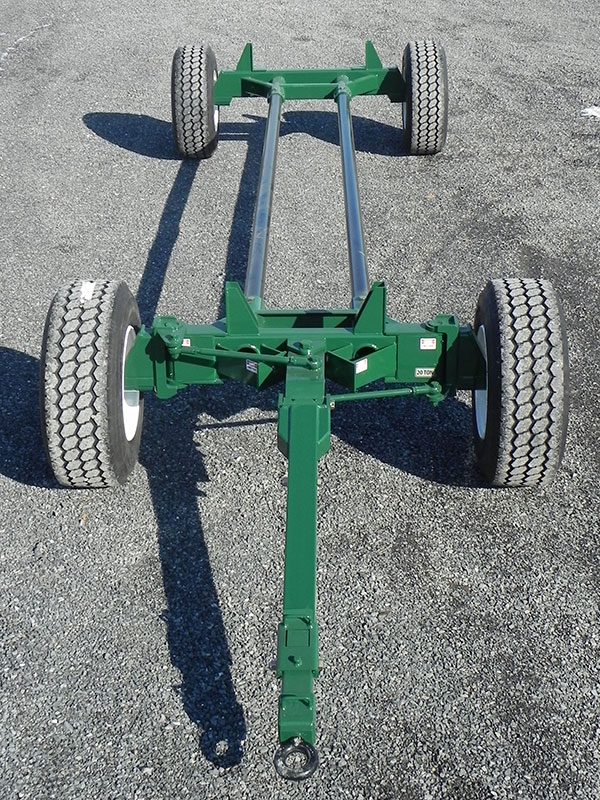

- Infinitely Adjustable Wheelbase - Available in 12', 14', 16', 18' and 20' Lengths

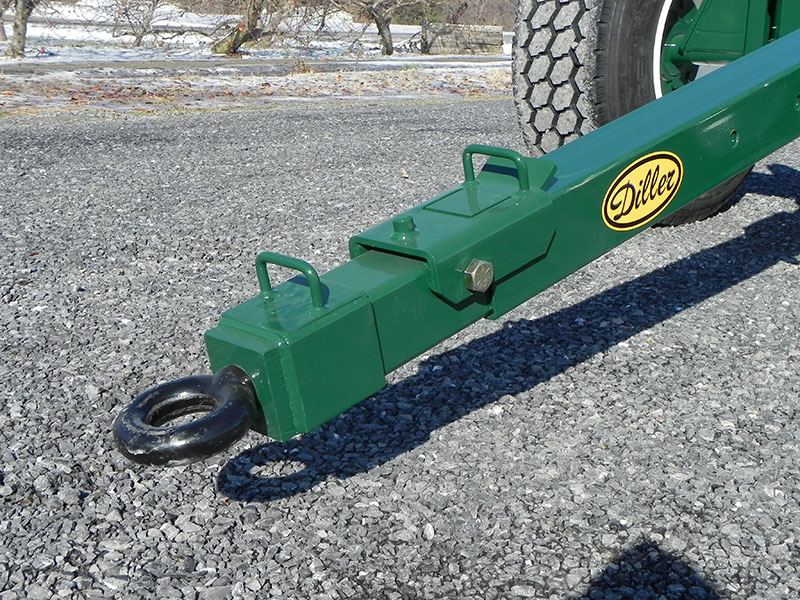

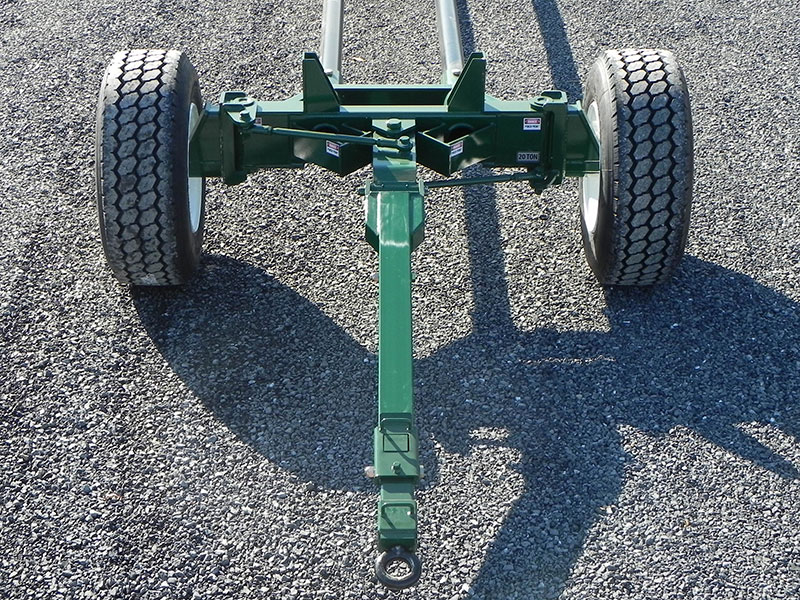

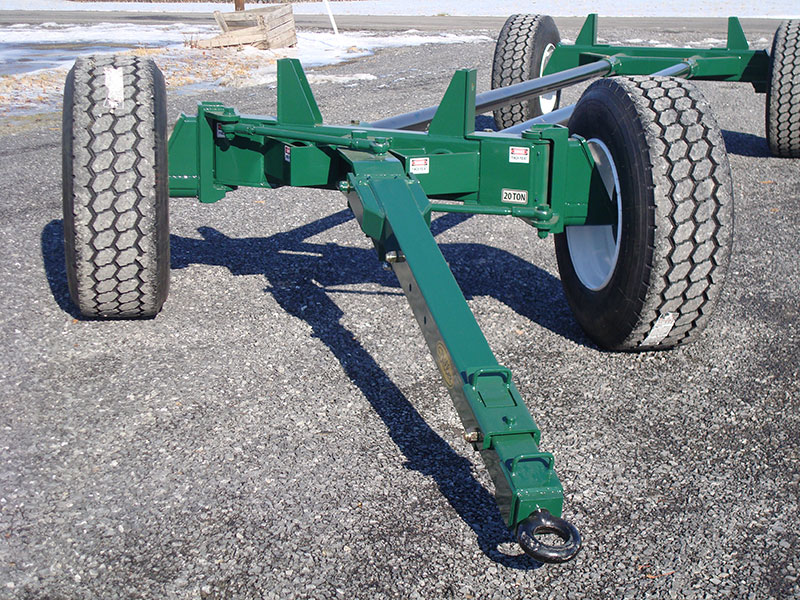

- Easy Hitch - Pull Out Tongue

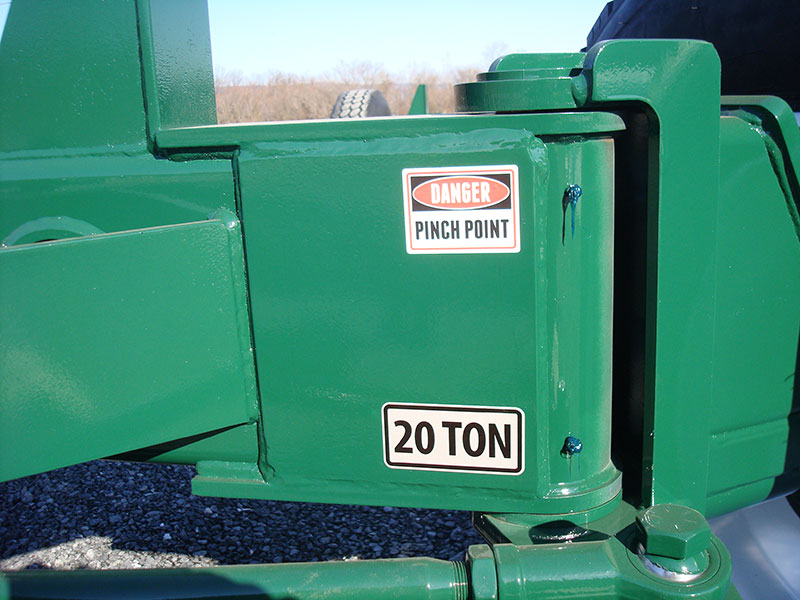

- Automotive Type Steering - Teflon Lined Ball Joints
- Reinforced Spindle Design
- Tapered Roller Bearings
- Easy Greasable Hubs
- Greasable Bushings at all Wear Points
- Standard Rear Hitch
- Epoxy Primer & 2-Component Polyurethane Paint
Options
- Wide Track (increases track width by 8")
- Compression Spring-Assist Tongue
- Multiple Tire & Wheel Upgrades
- Rocking Bolsters
- Pintle Hitch
- Electric Brakes
Specifications
Single Rear Axle |
Model |
Capacity |
Track Width |
Front Spindle |
Rear Spindle |
Axles |
Tires |
Wheels |
CS-08 |
16,000# |
77" |
1-3/4" |
1-3/4" |
3x6x3/16TS |
11L-15LRD |
15x8 6-6 |
CS-10 |
20,000# |
79" |
2-1/8" |
2-1/8" |
3x6x1/4TS |
11L-15LRD |
15x8 6-6 |
CS-12 |
24,000# |
77" |
2-1/4" |
2-1/4" |
3x8x1/4TS |
12.5L-15LRF |
15x10 8-8 |
CS-14 |
28,000# |
77" |
2-3/4" |
2-3/4" |
3x8x1/4TS |
14L-16.1LRF |
16.1x11 8-8 |
16 and 20 ton models are built to custom specifications based on the intended application |

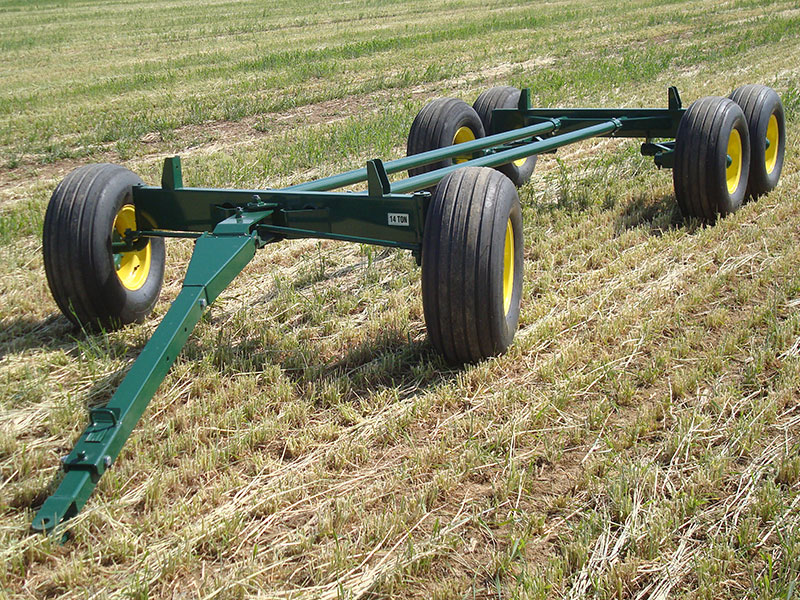

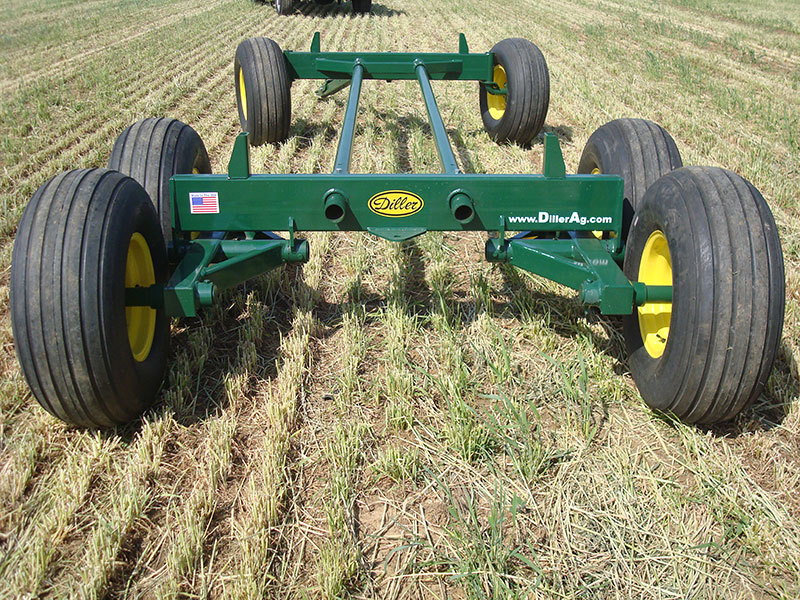

Tandem Rear Axle |
Model |
Capacity |
Track Width |
Front Spindle |
Rear Spindle |
Axles |
Tires |
Wheels |
CT-12 |
24,000# |
79" |
2-1/8" |
2-1/4" |
3x6x1/4TS |
11L-15LRD |
15x8 6-6 |
CT-14 |
28,000# |
77" |
2-1/4" |
2-1/2" |
3x8x1/4TS |
12.5L-15LRF |
15x10 8-8 |
16 and 20 ton models are built to custom specifications based on the intended application |
Tire & Wheel Options |
Tire Size |
Description |
Capacity (LBS/Tire) |
Rim Size |
11L x 15 |
D Range / 8 Ply |
2,540 |
15 x 8 x 6 |
11L x 15 |
E Range / 10 Ply |
2,910 |
15 x 8 x 6 |
11L x 15 |
F Range / 12 Ply |
3,200 |
15 x 8 x 6/8 |
12.5L x 15 |
E Range / 10 Ply |
3,420 |
15 x 10 x 6/8 |
12.5L x 15 |
F Range / 12 Ply |
3,860 |
15 x 10 x 6/8 |
14L x 16.1 |
D Range / 8 Ply |
3,860 |
W11C x 16.1 x 8 |
14L x 16.1 |
F Range / 12 Ply |
4,680 |
W11C x 16.1 x 8 |
16.5L x 16.1 |
E Range / 10 Ply |
5,200 |
W14C x 16.1 x 8 |
16.5L x 16.1 |
G Range / 14 Ply |
6,400 |
W14C x 16.1 x 8/10 |
385/65 x R22.5 |
Truck Tire New Recaps |
9,361 |
22.5 x 11.25 x 8/10 |
